- Add Trunk Group

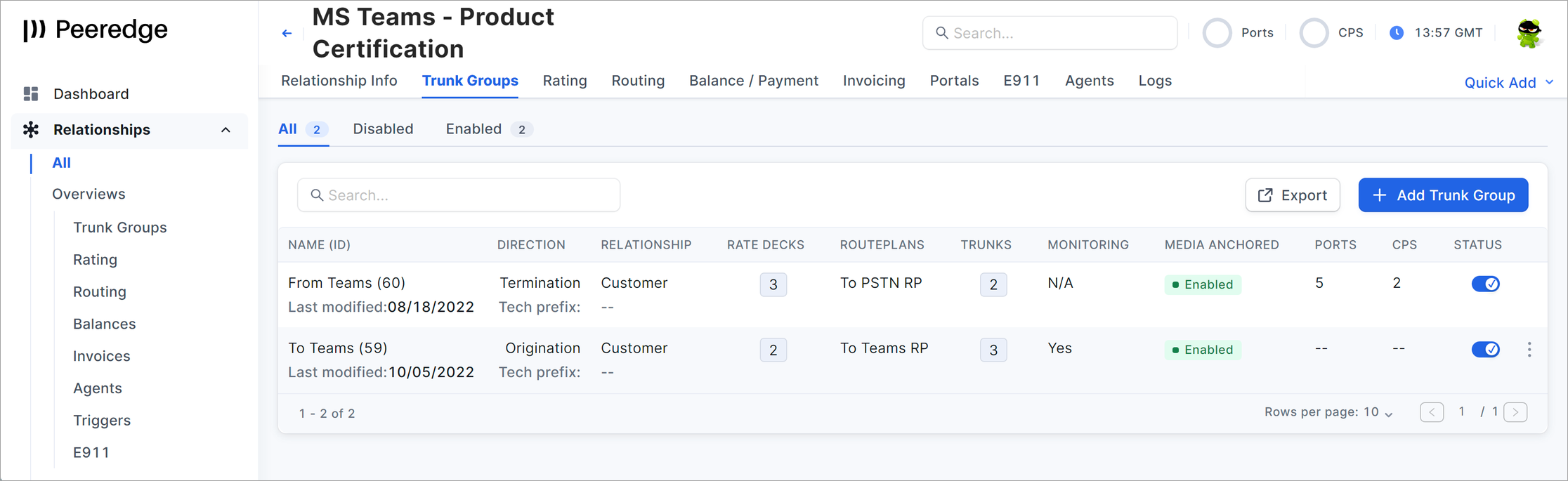

There are two ways to add a Trunk Group. The most common method is to click the + Add Trunk Group button on the Relationship’s Trunk Groups page.

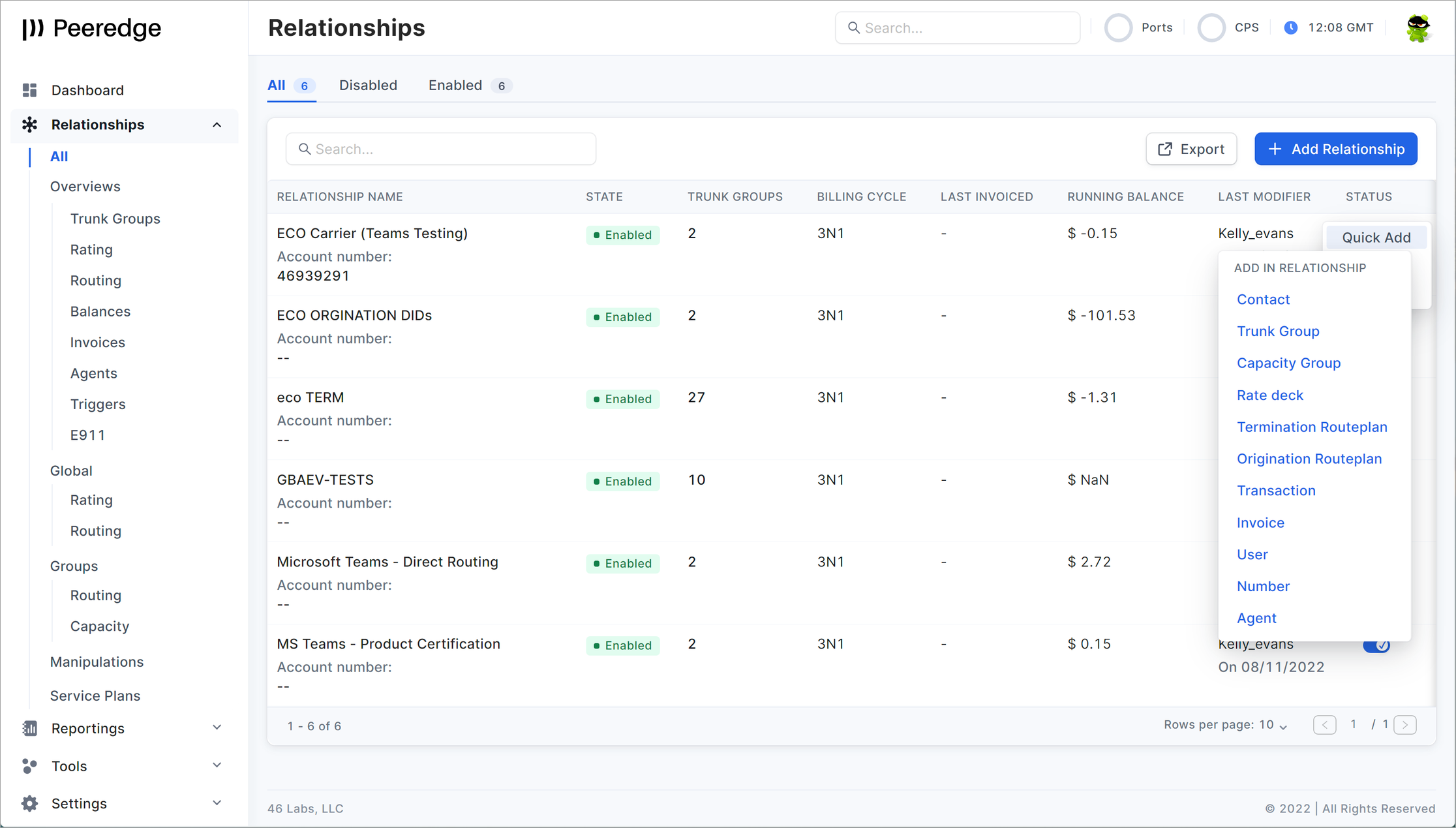

The second method is to use the Quick Add feature. This feature can be accessed on Relationship page (see image above) or from the Relationships table. In the Relationships table, find the relationship to modify in the main window and move your mouse to the right of the STATUS field. Left click the ellipsis and select Quick Add. Click Trunk Group.

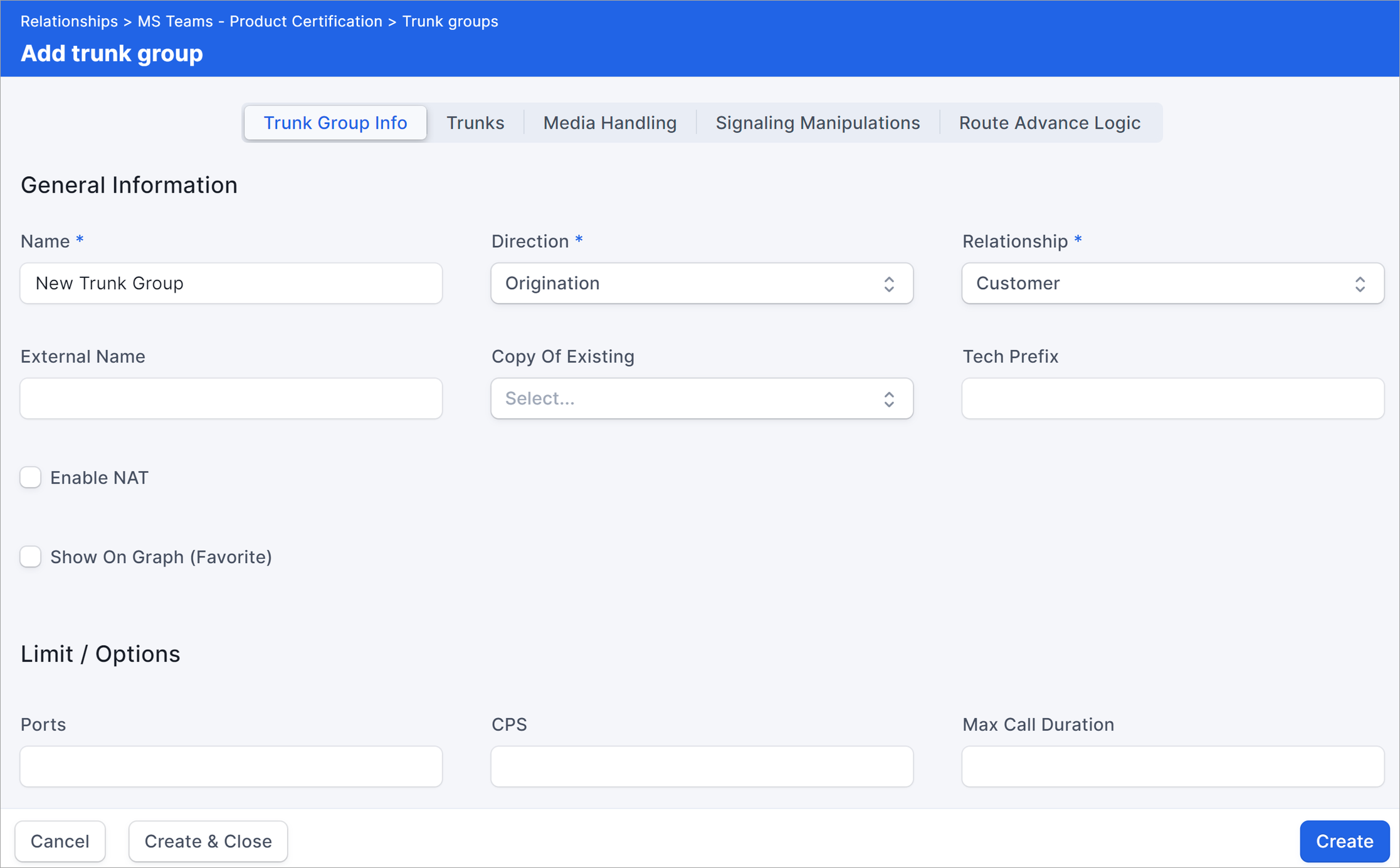

1. Add a Trunk Group name in the Name field.

2. Add an Origination or Termination direction in the Direction field.

3. Add a Customer or Vendor relationship in the Relationship field.

4. Click the Create Button.

See the appropriate Trunk Group type for details on how to properly add a given Trunk Group type.

• Origination Customer Trunk Group

• Termination Customer Trunk Group

• Origination Vendor Trunk Group

• Termination Vendor Trunk Group
