Manipulations

TRUNK GROUP NAME - Displays the name of the Trunk Group that the manipulation belongs to.

HEADER - Displays the SIP Header (ANI, DNIS, SIP Code) that is potentially being modified.

SEARCH RULE - Displays the pattern or regular expression to search for in the header.

REPLACE RULE - Displays the pattern or regular expression to replace the header with if the search rule is matched.

LAST MODIFIER - Displays the user name of the person that created or last modified the manipulation and date it was created or last modified.

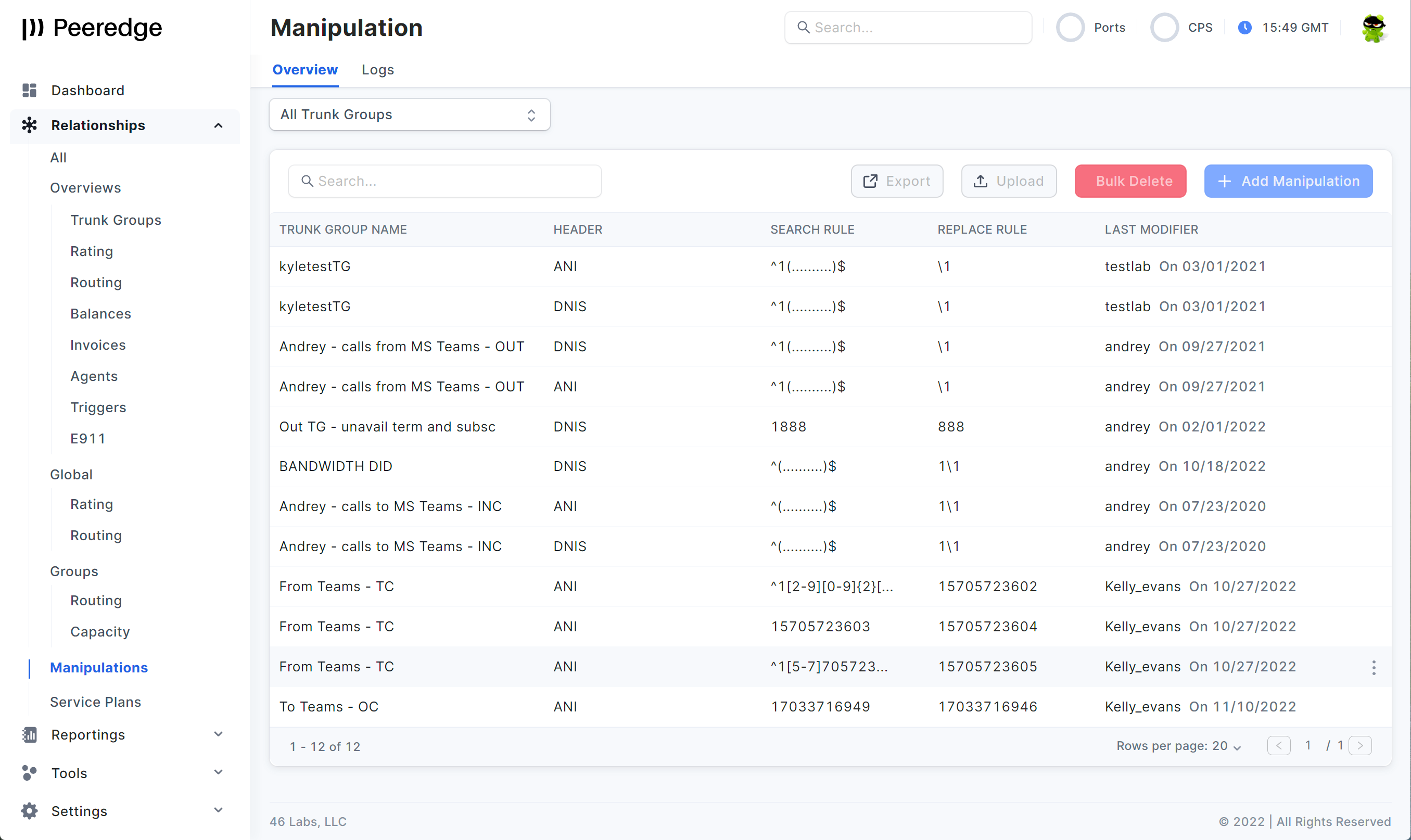

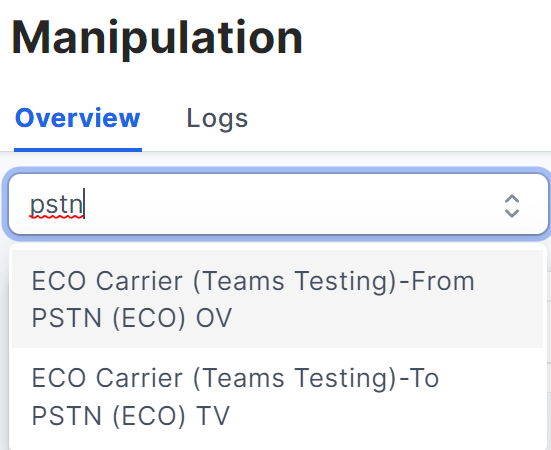

Trunk Group drop-down list - By default, All Trunk Groups is displayed in the Overview page.  This option will display all configured manipulations across all trunk groups. Simple pattern matching can be used to filter the contents of the TRUNK GROUP NAME, HEADER, SEARCH RULE, or REPLACE RULE columns by entering the pattern into the Search... field. In the below example pstn (case insensitive) was used to limit the results to Trunk Groups with PSTN in the name. To perform Upload, Bulk Delete, or +Add Manipulation operations, select a specific trunk group from the drop-down list must be selected.

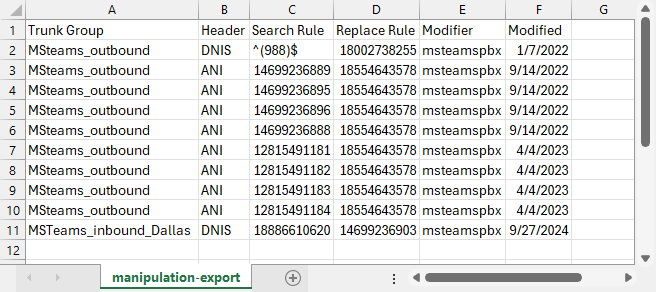

Export -  The export button allows the user to export the manipulations to a CSV file.  The export file will be immediately available for download via the web browser.

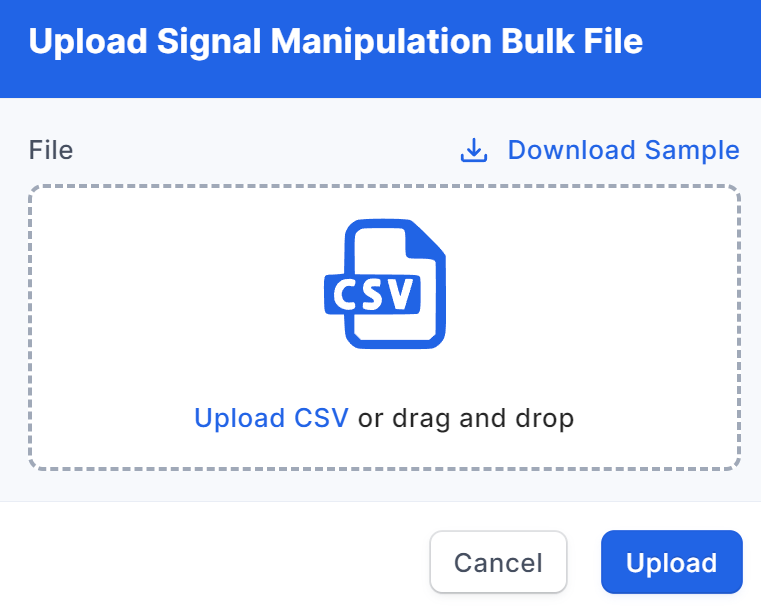

Upload - When a specific Trunk Group is selected, this button allows the user to upload a CSV file of manipulations to the Trunk Group.  Click the Download Sample for an example CSV file format.

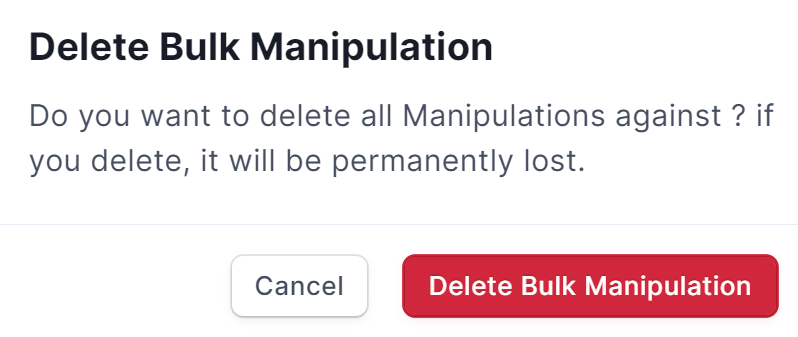

Bulk Delete - When a specific Trunk Group is selected, this button will allow the user to delete all manipulations defined in the Trunk Group.  The user will need to click the Delete Bulk Manipulation confirmation button.

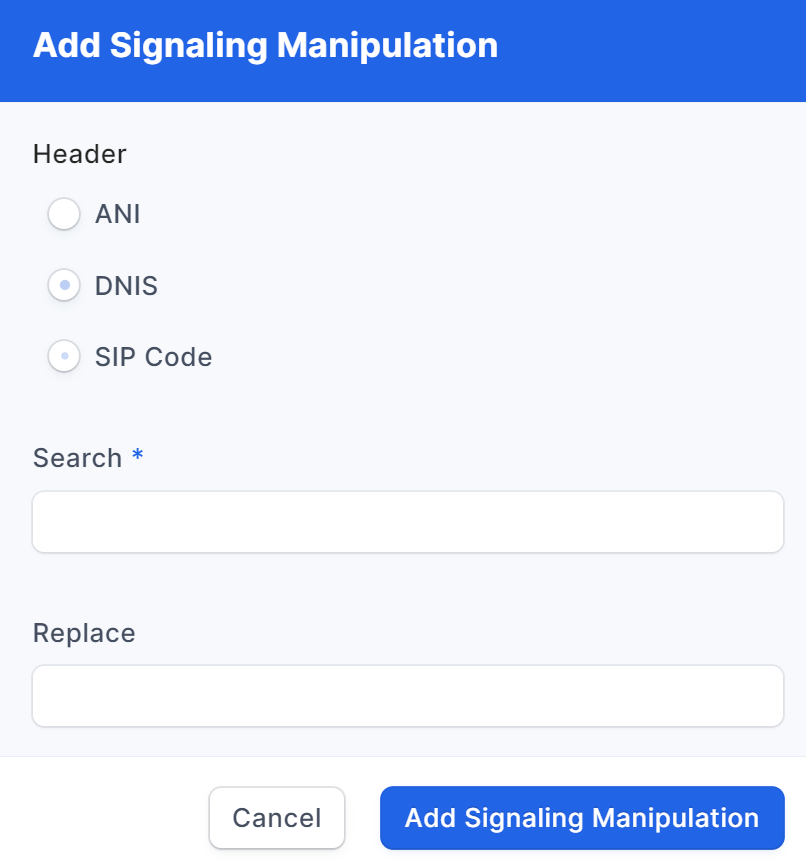

Add Manipulation - When a specific Trunk Group is selected, the + Add Manipulation button can be used to add a manipulation to the Trunk Group.

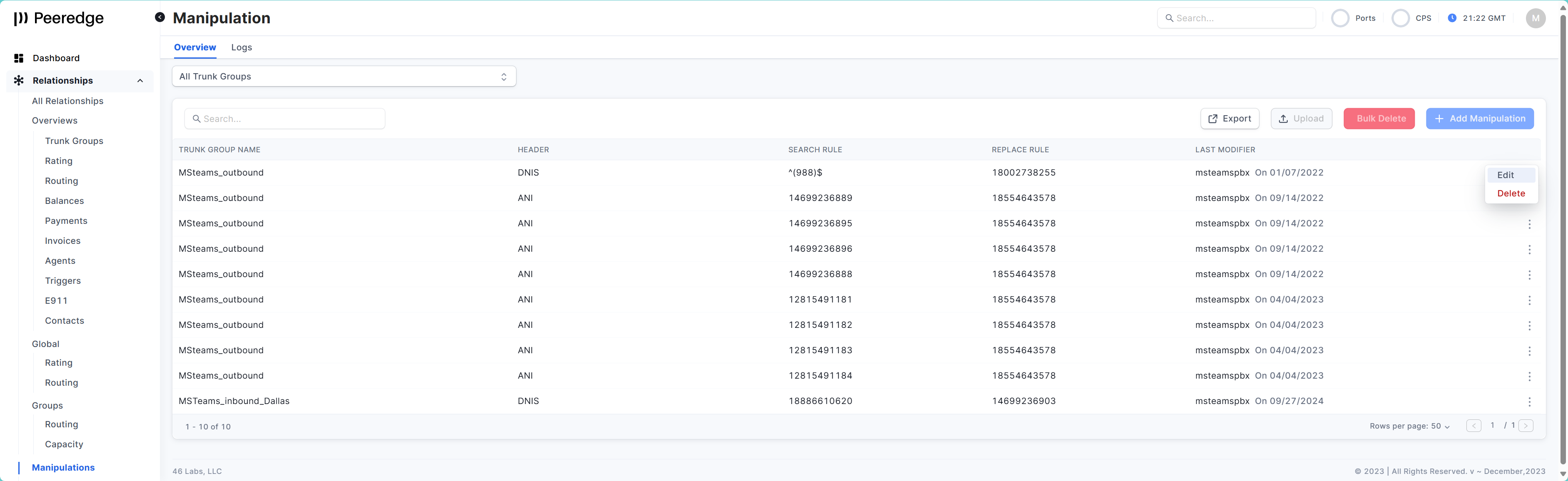

To edit a manipulation click on the horizonal ellipsis at the right of the manipulation and then select Edit.

Make the appropriate changes to the manipulation and then click the Edit Signaling Manipulation button.

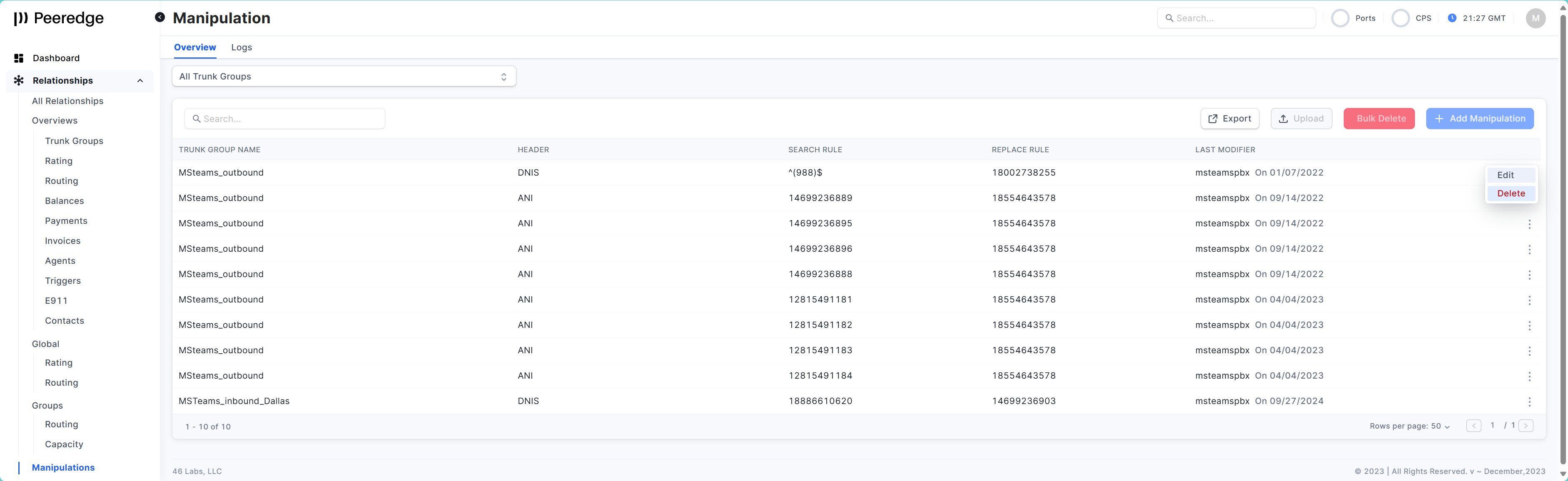

To delete a specific manipulation, click on the horizonal ellipsis at the right of the manipulation and then select Delete.

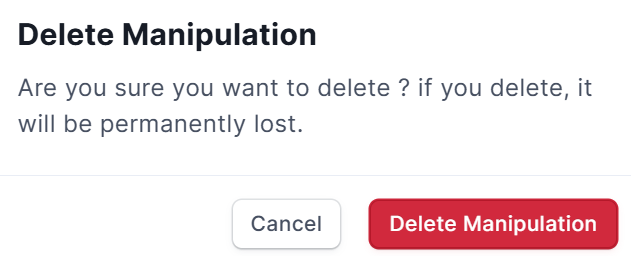

Click the Delete Manipulation button to confirm the deletion.

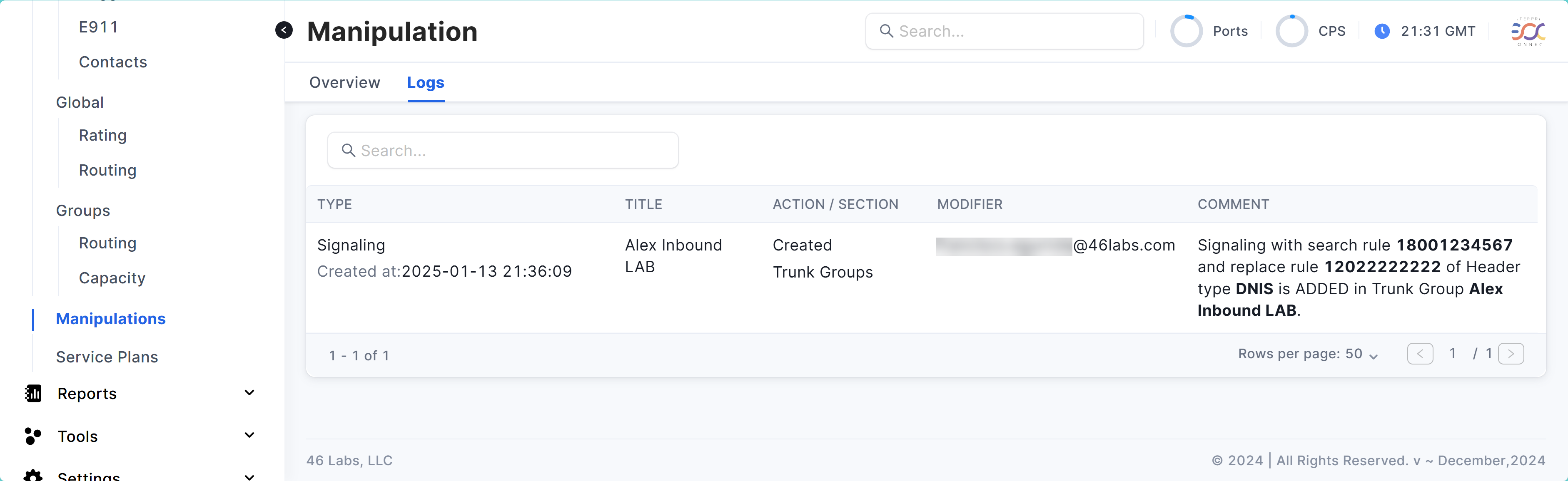

The Logs page will display all recent additions, changes, and deletions of manipulations.
